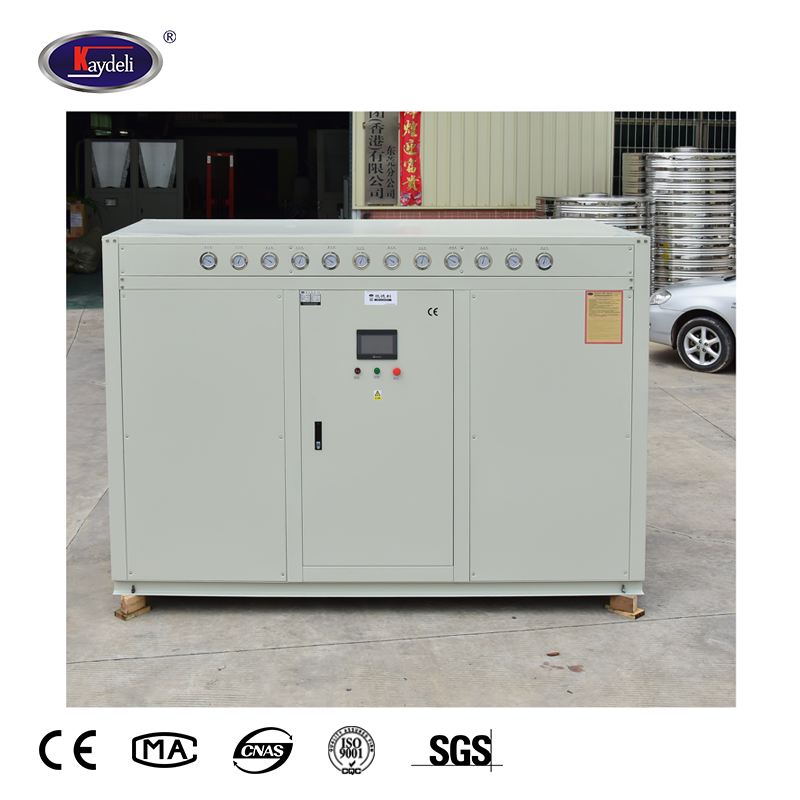

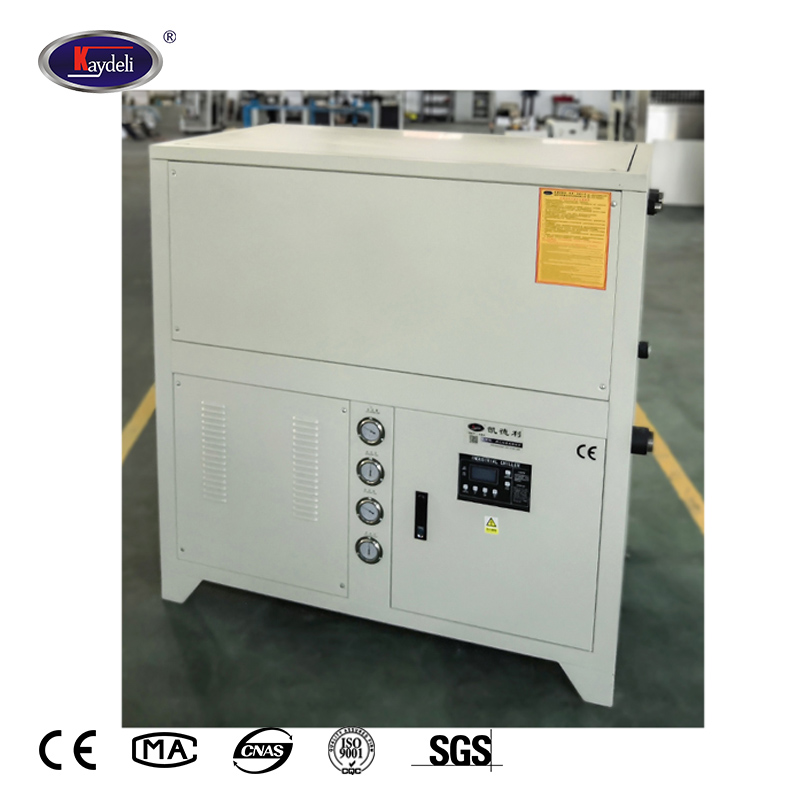

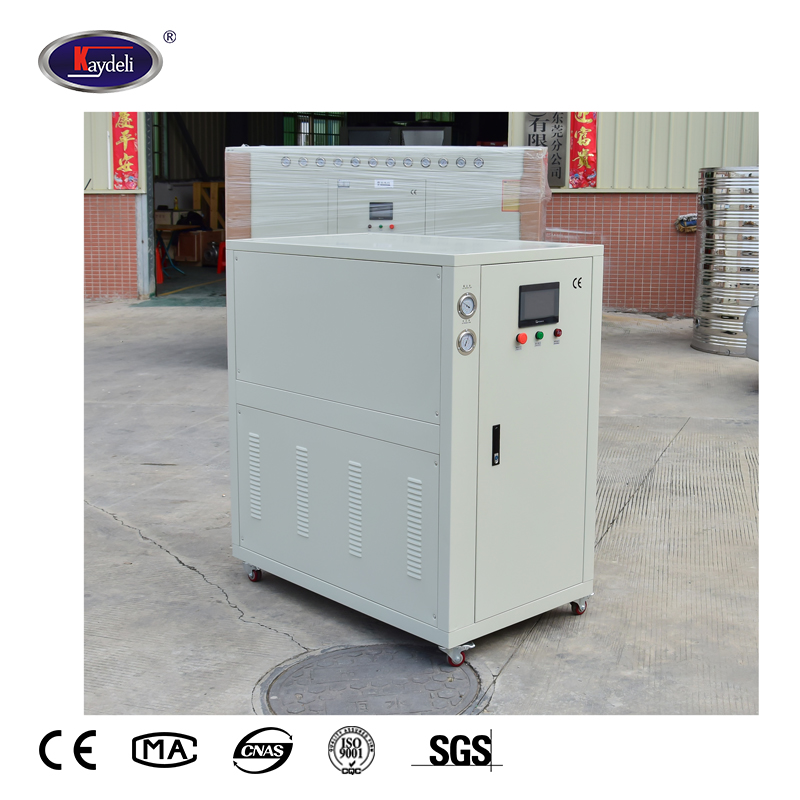

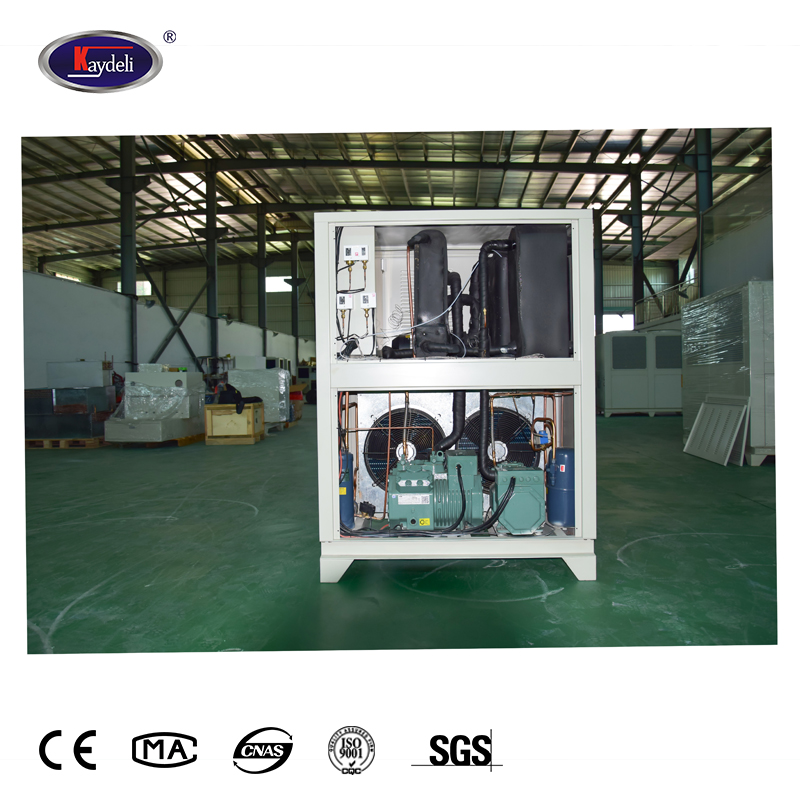

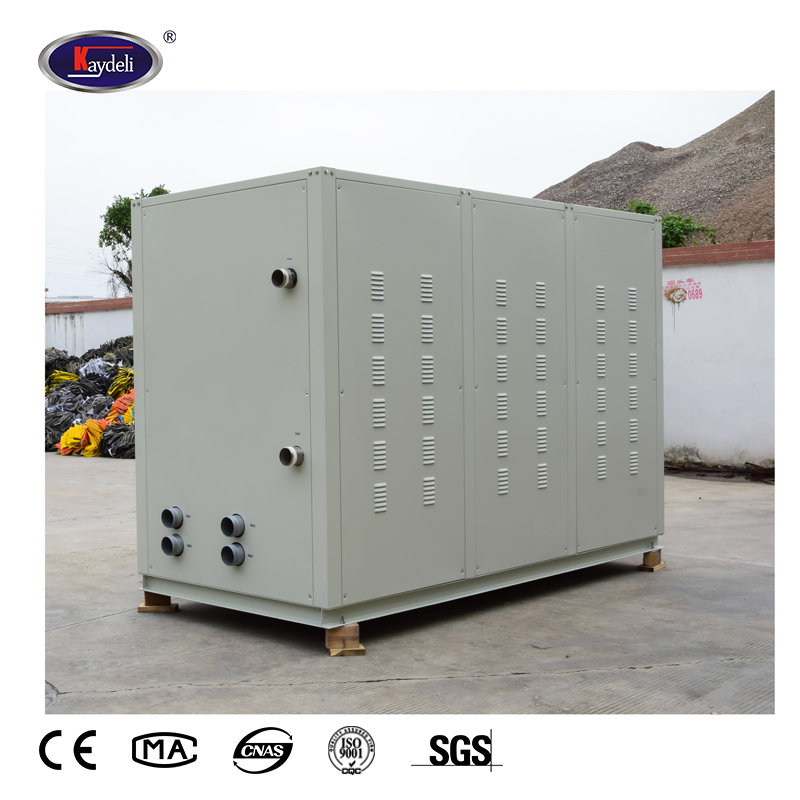

Water cooled low temperature chiller for medical machine, reactor, Grinder,bottle blowing machine 3p 5p 6p 8p 10p 12p 15p 20p 25p 30p 40p Water cooled low temperature chiller for medical machine, reactor, Grinder,bottle blowing machine 3p 5p 6p 8p 10p 12p 15p 20p 25p 30p 40p

Feature: ◆The unit adopts R22/R404A/R507 cold coal (optional); ◆Using the original French "Maneurop" or the American "Copeland" (option); ◆Equipped with the application of new air heat exchanger and shell-and-tube heat exchanger, the heat exchange efficiency of the unit is greatly improved; ◆It can realize double working condition and is suitable for ice storage air conditioning system; ◆The minimum outlet temperature of the unit's frozen liquid can reach -10 °C or (-25 °C) (optional); ◆ Wide range of applications, can be used in other special industries such as industrial refrigeration, medicine, chemical, refrigeration;

Quantity:
Share this:
  • Product Description

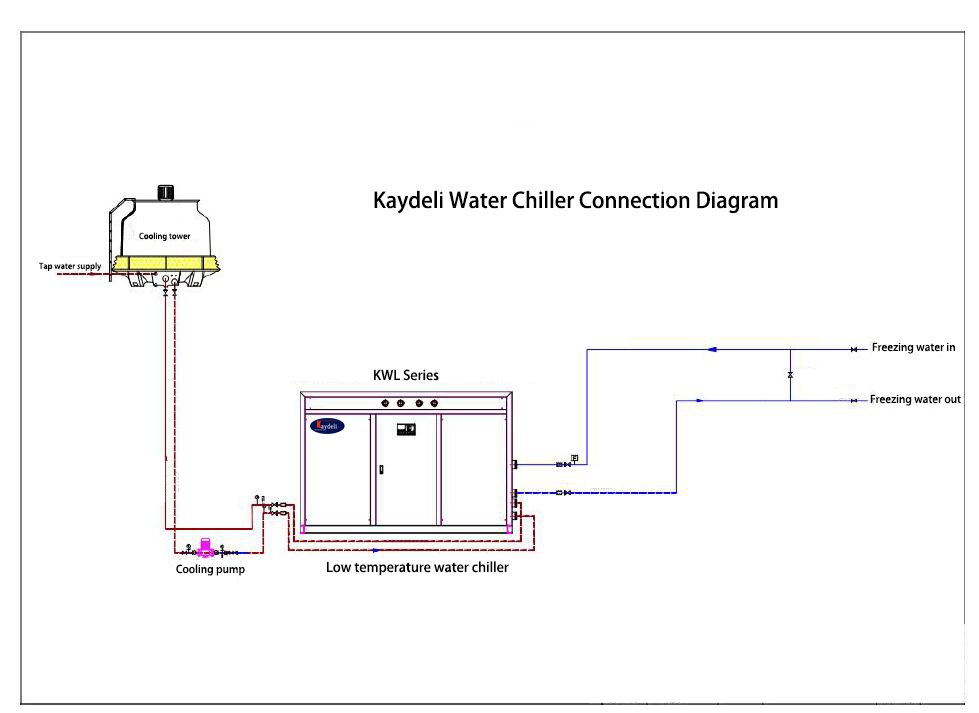

  • Connection Diagram

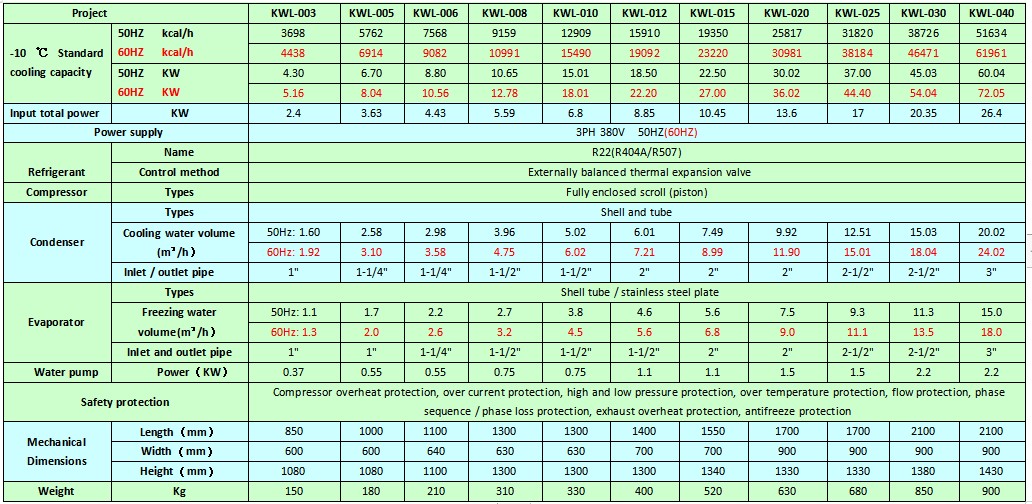

 Water-cooled low temperature freezer -10 degrees parameter table:

water cooled low temperature chiller(-10).JPG

Remarks:

1. The cooling capacity is based on: chilled water inlet and outlet water temperature -5 °C / -10 °C; cooling water inlet and outlet water temperature is 30 °C / 35 °C.
2. Working range: the temperature range of the frozen aqueous solution is -10  to 20℃; the temperature difference between the inlet and outlet of the frozen aqueous solution is 3to 8 .
3. Cooling water temperature range: 18  to 40 ; cooling water inlet and outlet water temperature difference of 3.5  to 10 .
The right to change the above parameters or dimensions without prior notice is reserved.

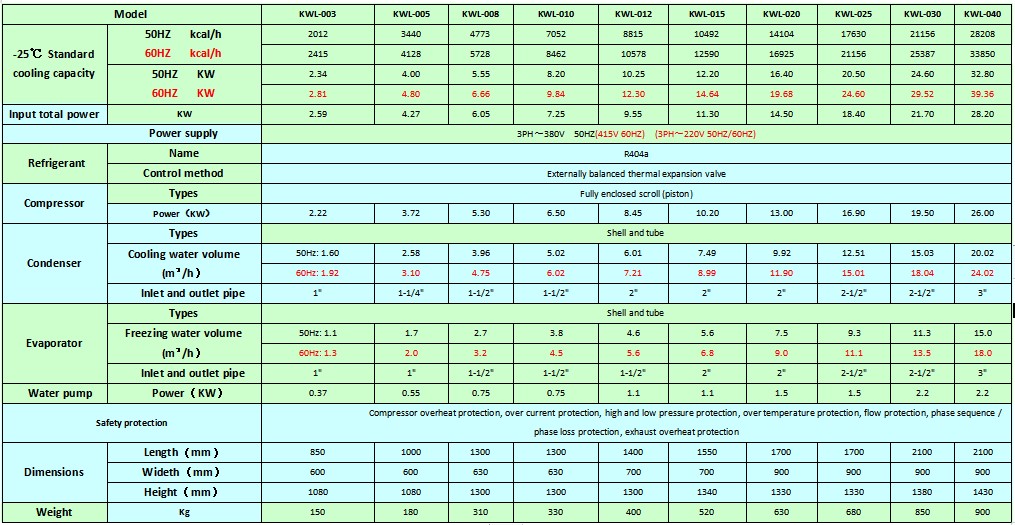

 Water-cooled low temperature freezer -25 degrees parameter table:

water cooled low temperature chiller(-25).JPG


Remarks:

1. The cooling capacity is based on: chilled water inlet and outlet water temperature -20 / -25; cooling water inlet and outlet water temperature 25 / 30
2. Working range: The temperature range of the frozen aqueous solution is -25 ~ -5 ; the temperature difference between the inlet and outlet of the frozen aqueous solution is 3~ 8
3. The cooling water temperature range is 18~ 55; the cooling water inlet and outlet water temperature difference is 3.5 ~ 10. The right to change the above parameters or dimensions without prior notice is reserved.

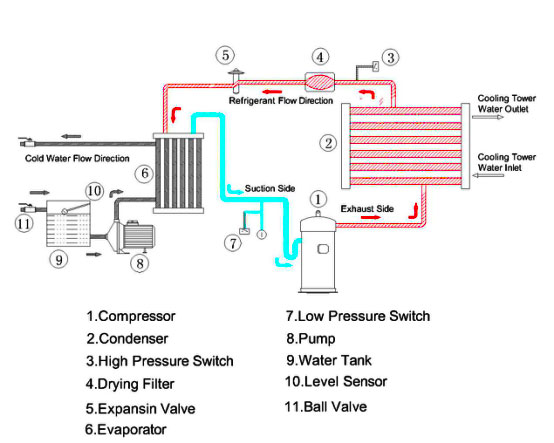

Water Cooling chiller working Principle





水冷涡旋KWB-025 管道连接图 英文.jpg

×
