Kaydeli Chiller Equipment

For safety, quality, security, use Kaydeli!

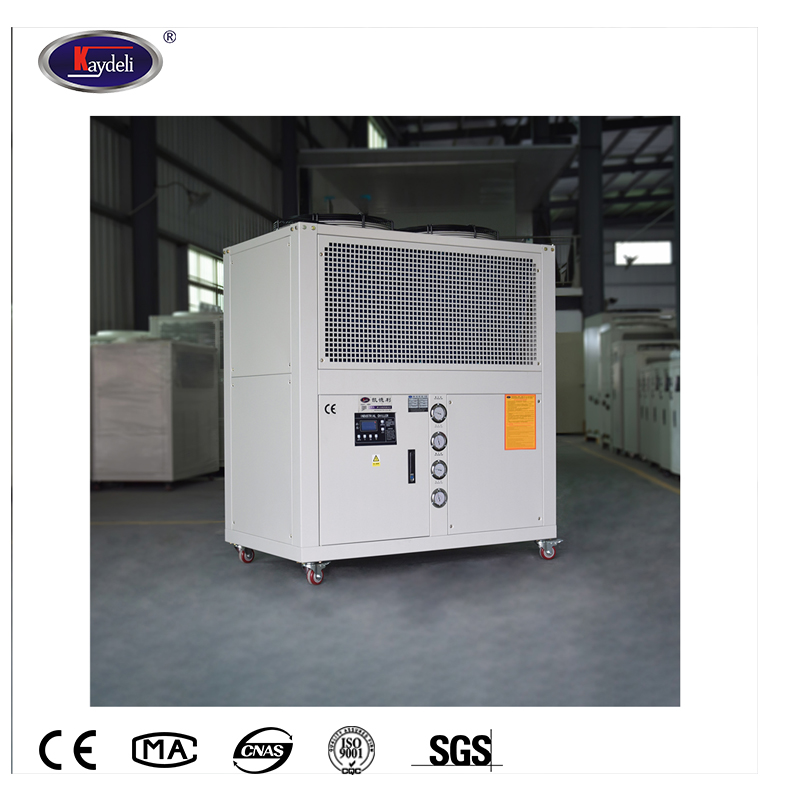

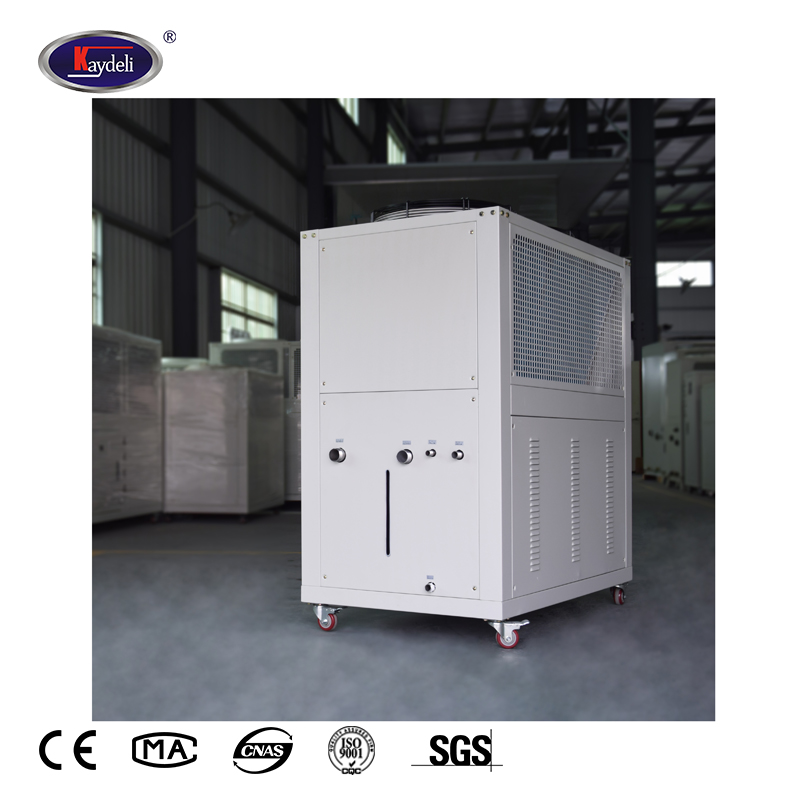

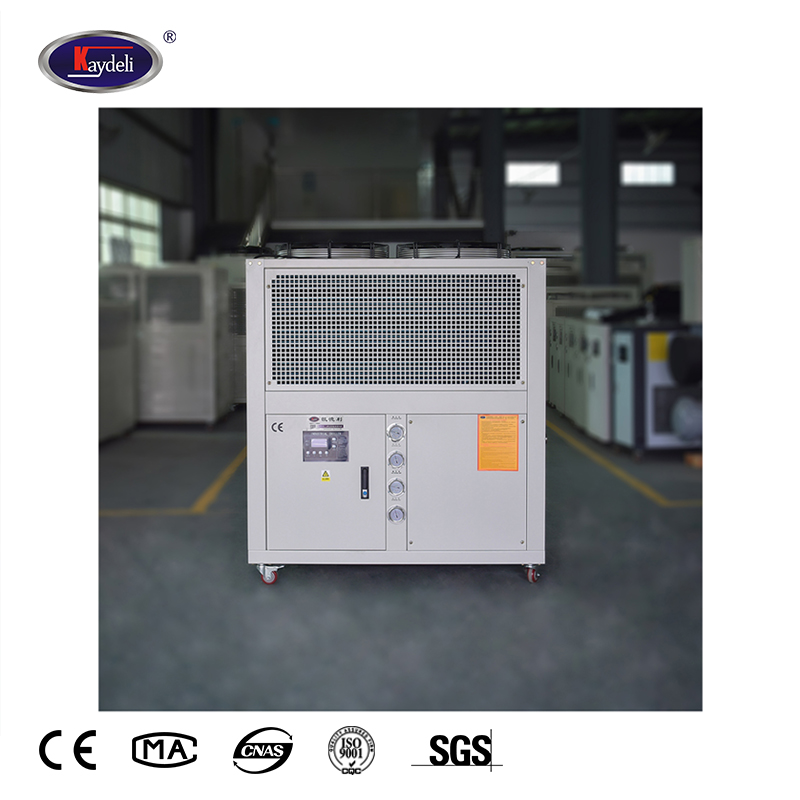

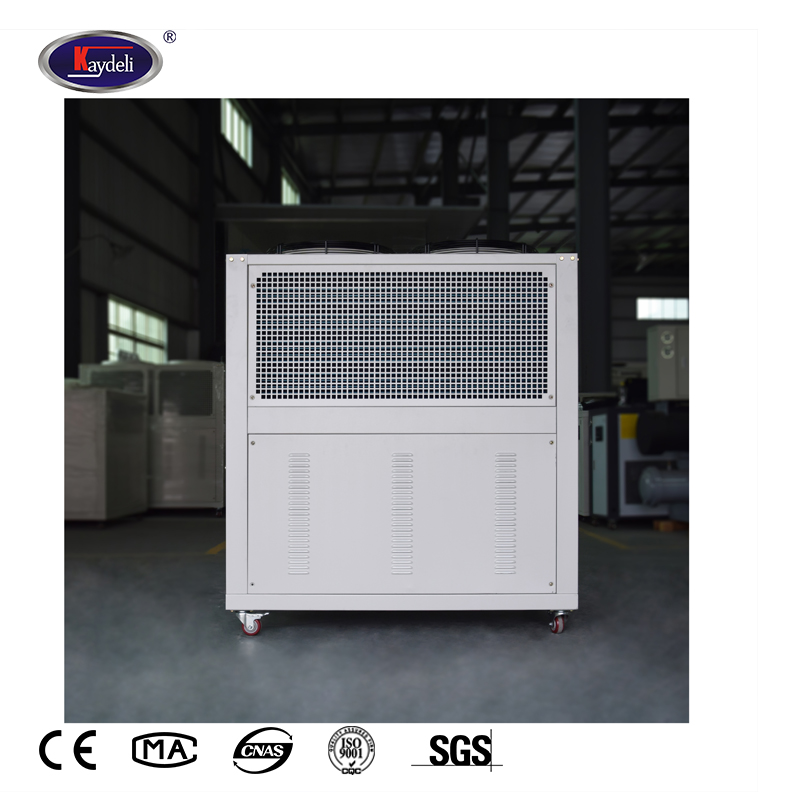

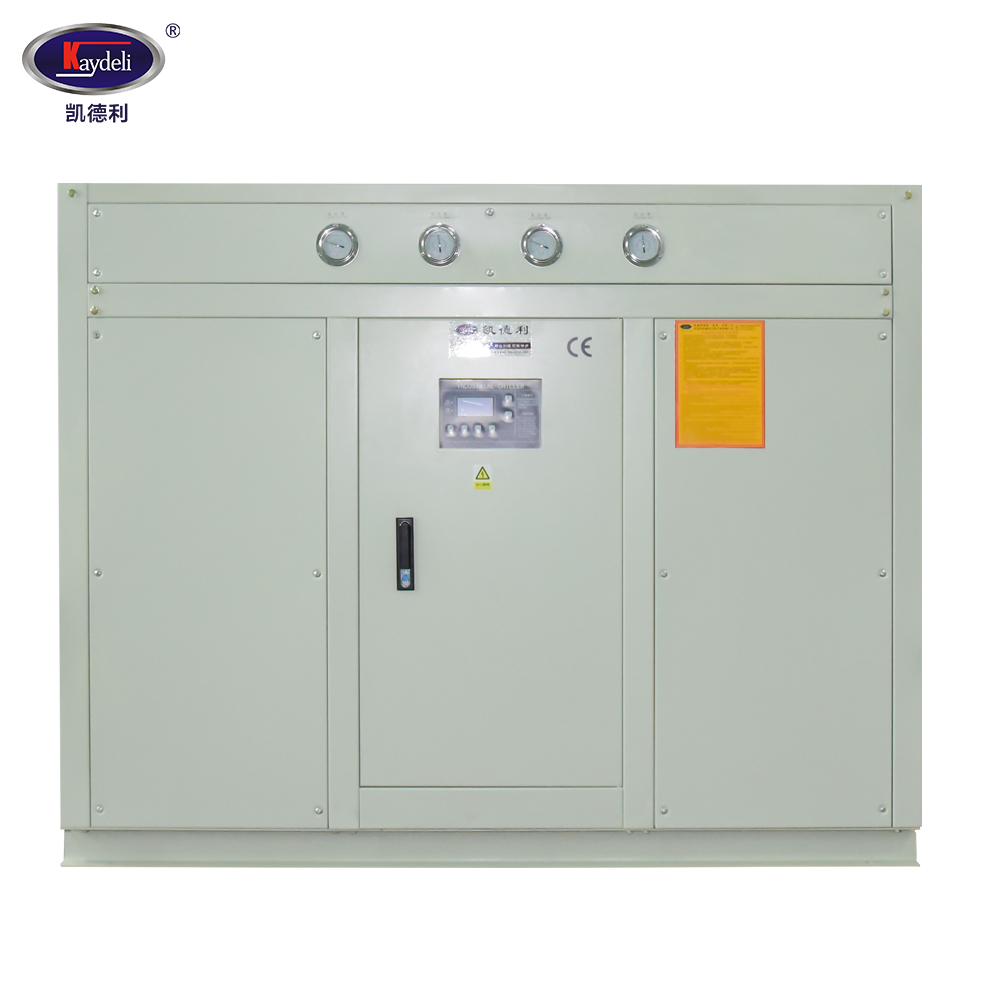

Air cooled low temperature chiller in industrial for food&beverage production 3hp 5hp 10hp 12hp 15hp 25hp 30hp 40hp Air cooled low temperature chiller in industrial for food&beverage production 3hp 5hp 10hp 12hp 15hp 25hp 30hp 40hp

10 to 50 Nominal Tons 10 to 60 Nominal Tons Feature: ◆The unit adopts R22/R404A/R507 cold coal (optional); ◆Using the original French “Maneurop” or the American “Copeland” (option); ◆Equipped with the application of new air heat exchanger and shell-and-tube heat exchanger, the heat exchange efficiency of the unit is greatly improved; ◆It can realize double working conditions and is suitable for ice storage air conditioning systems; ◆The minimum outlet temperature of the unit's frozen liquid can reach -10 °C or (-25 °C) (optional); ◆ Wide range of applications, can be used in other special industries such as industrial refrigeration, medicine, chemical, refrigeration;

Quantity:
Share this:
  • Product Specification
  • Air cooled connection diagram

Air-cooled low temperature freezer -10 ℃degrees parameter table:

air cooled low temperature chiller(-10)

Remarks:

 1. The cooling capacity is based on: the temperature of the inlet and outlet of the frozen liquid is -5 / -10 ; the ambient dry bulb temperature is 35 , and the wet bulb temperature is 28 .
2. Working range: The temperature range of the frozen liquid solution is -10  to 20; the temperature difference between the inlet and outlet of the frozen liquid is 3 to 8 .
  It is used in an environment with an ambient temperature of 5-55. The above test data is 40% ethylene glycol solution, salt water and other coolants, please consult our company.
  The right to change the above parameters or dimensions without prior notice is reserved.

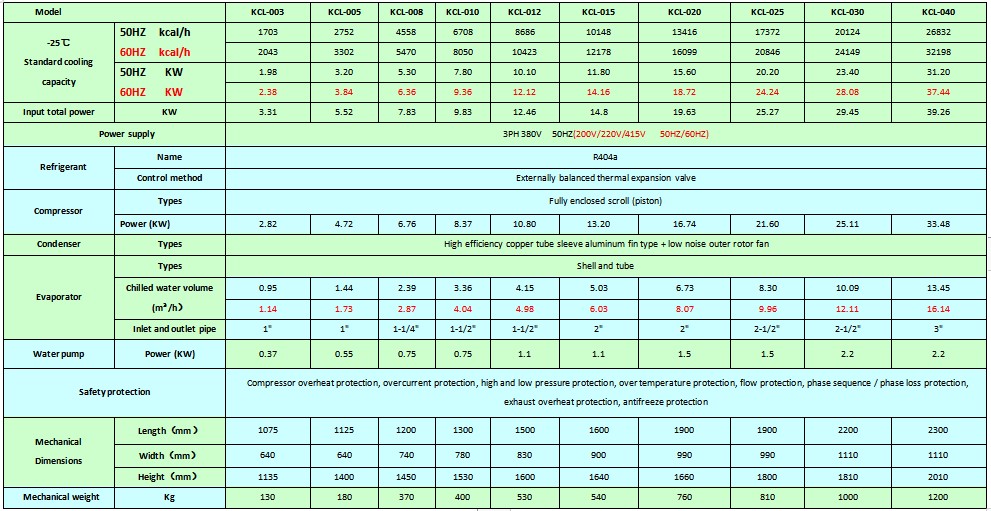

Air-cooled low temperature freezer -25℃ degrees parameter table

 air cooled low temperature chiller(-25)

Remarks:

1. The cooling capacity is based on: chilled water inlet and outlet water temperature -20  / -25  ; cooling air temperature 30   ~ 38
2. Working range: The temperature range of the frozen solution water is -25  ~ -5  ; the temperature difference between the inlet and outlet of the frozen aqueous solution is 3  ~ 8 .
 Use at an ambient temperature of 5-55
 The right to change the above parameters or dimensions without prior notice is reserved.

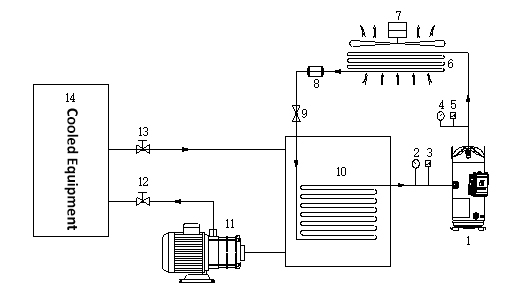

风冷连接简易图 英文

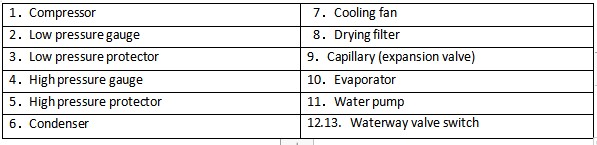

风冷连接简易图 英文2.JPG

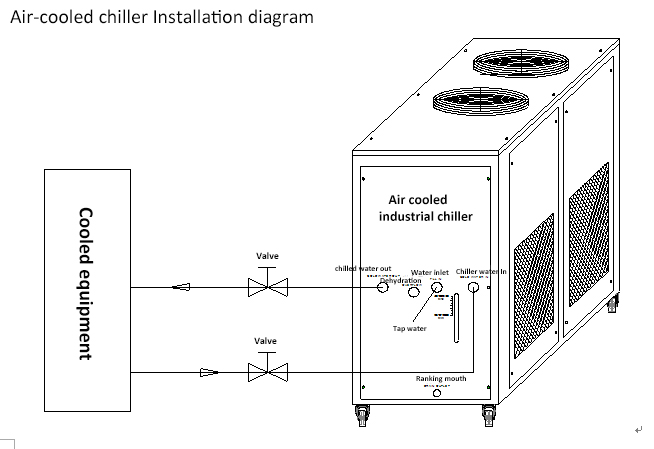

风冷式冷水机安装示意图 英文.jpg

×
