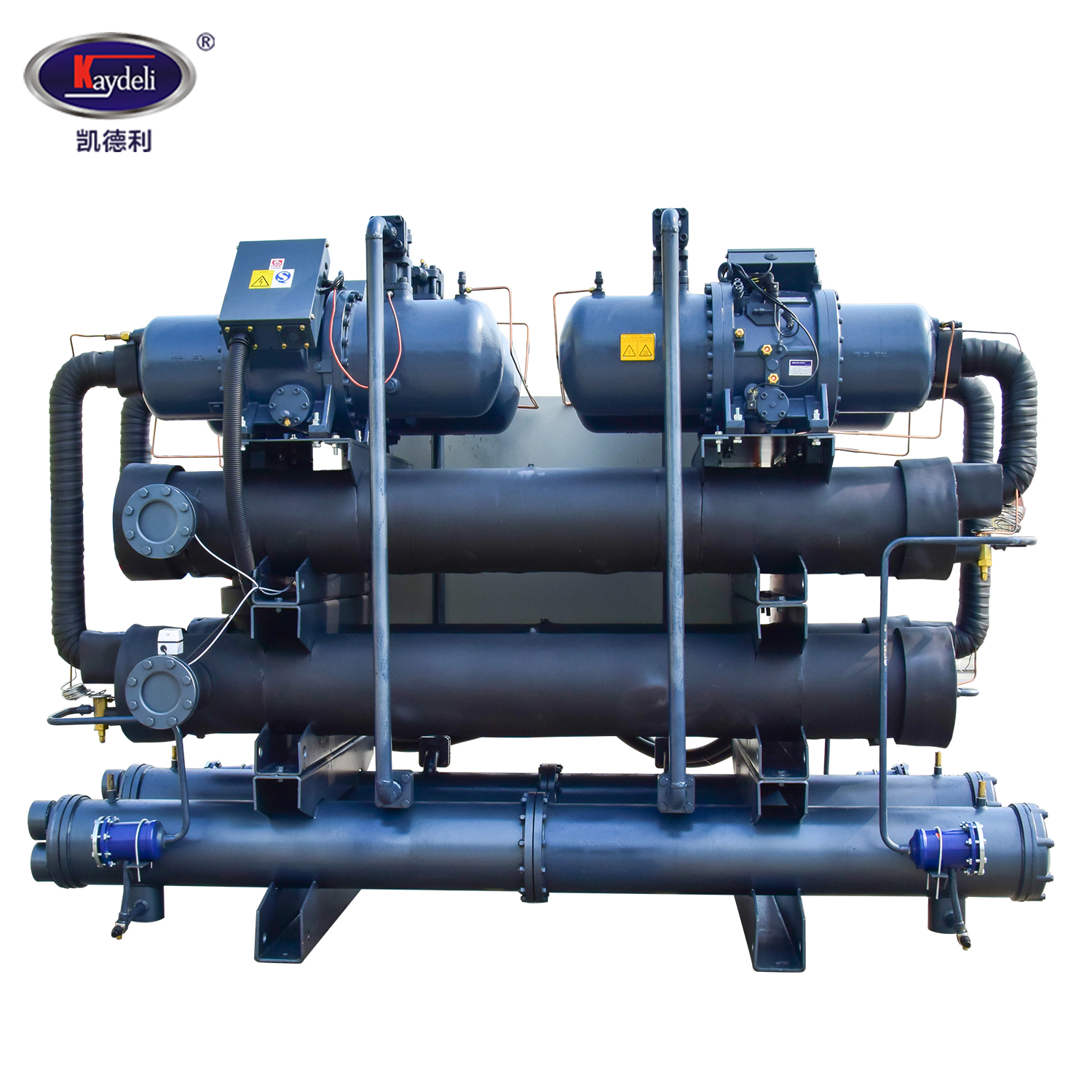

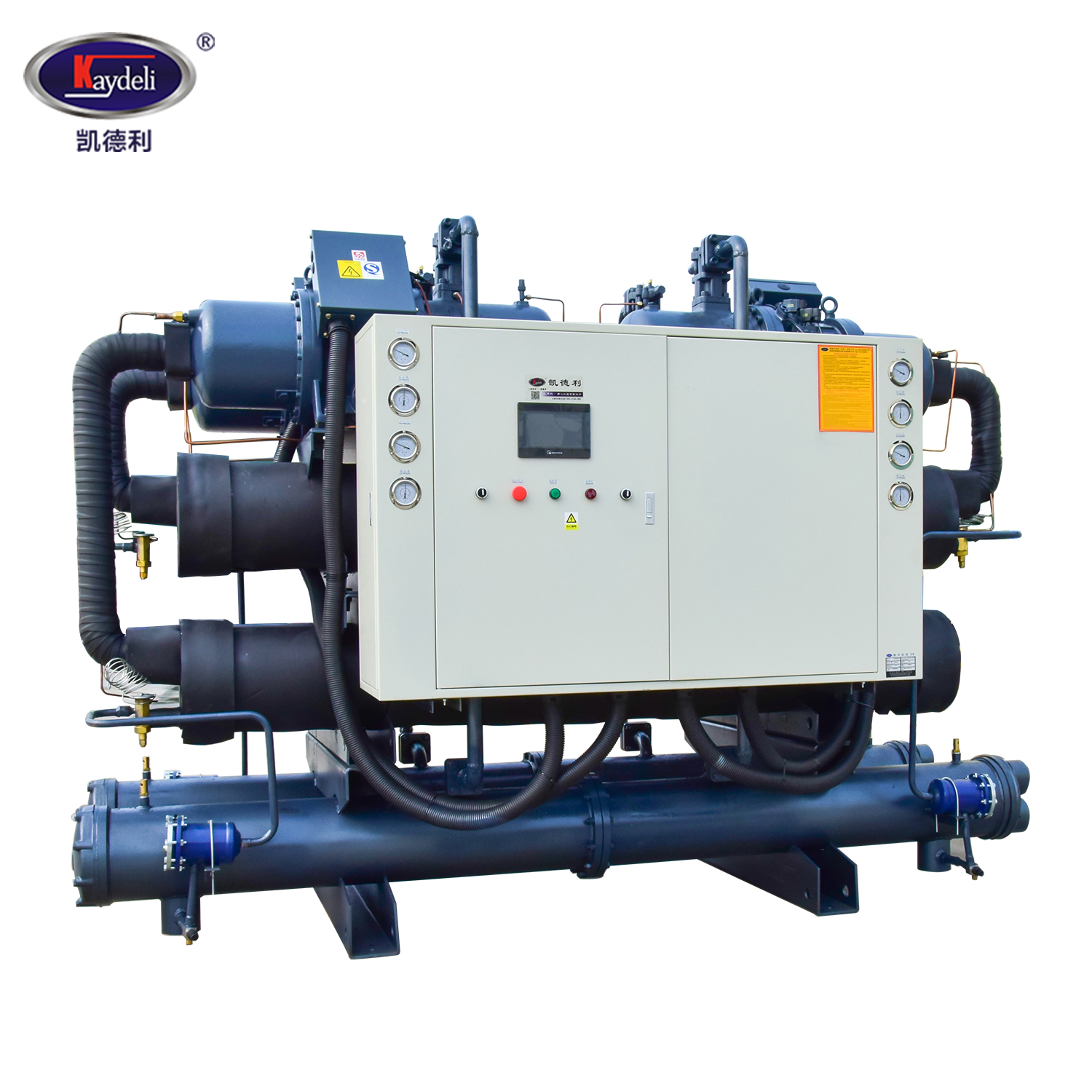

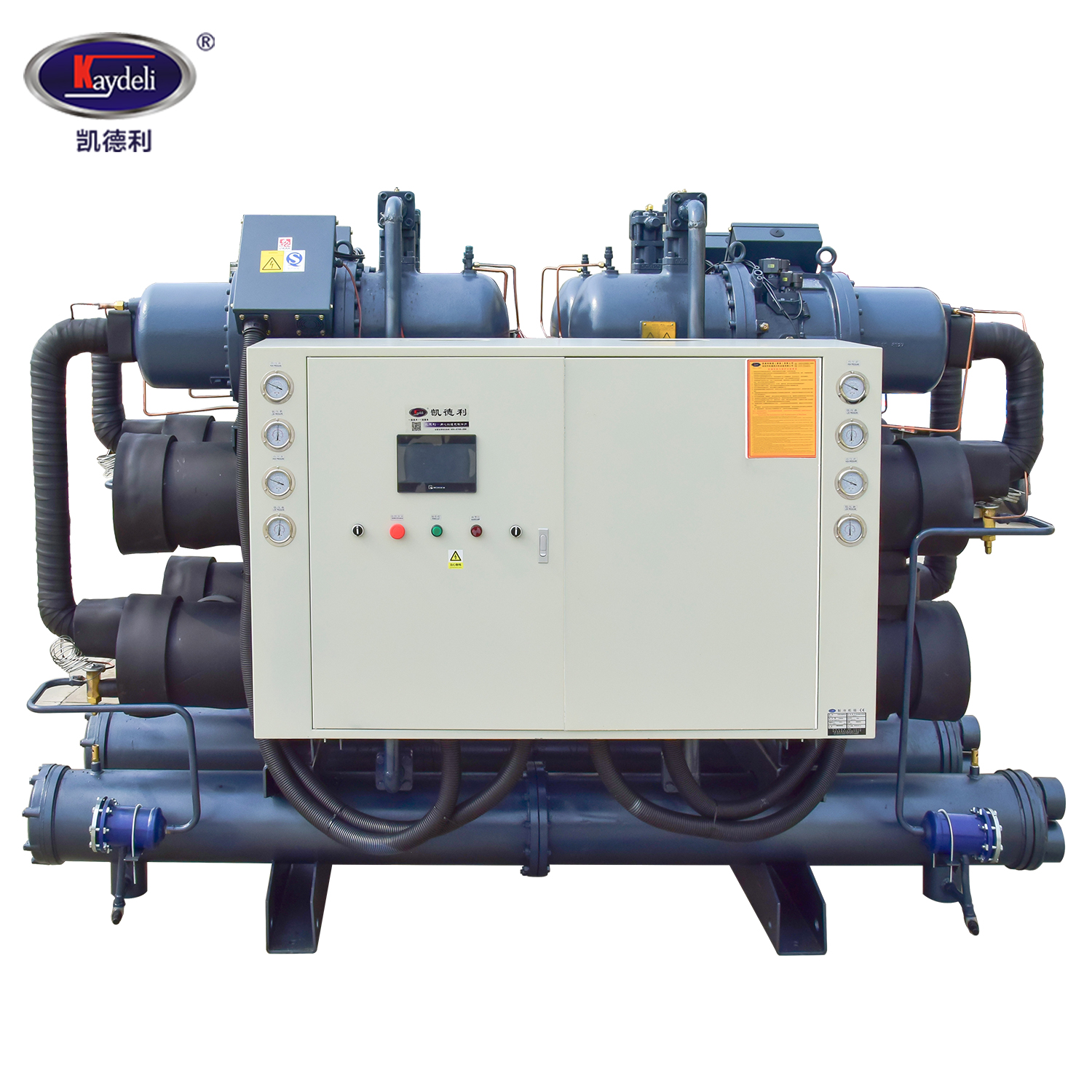

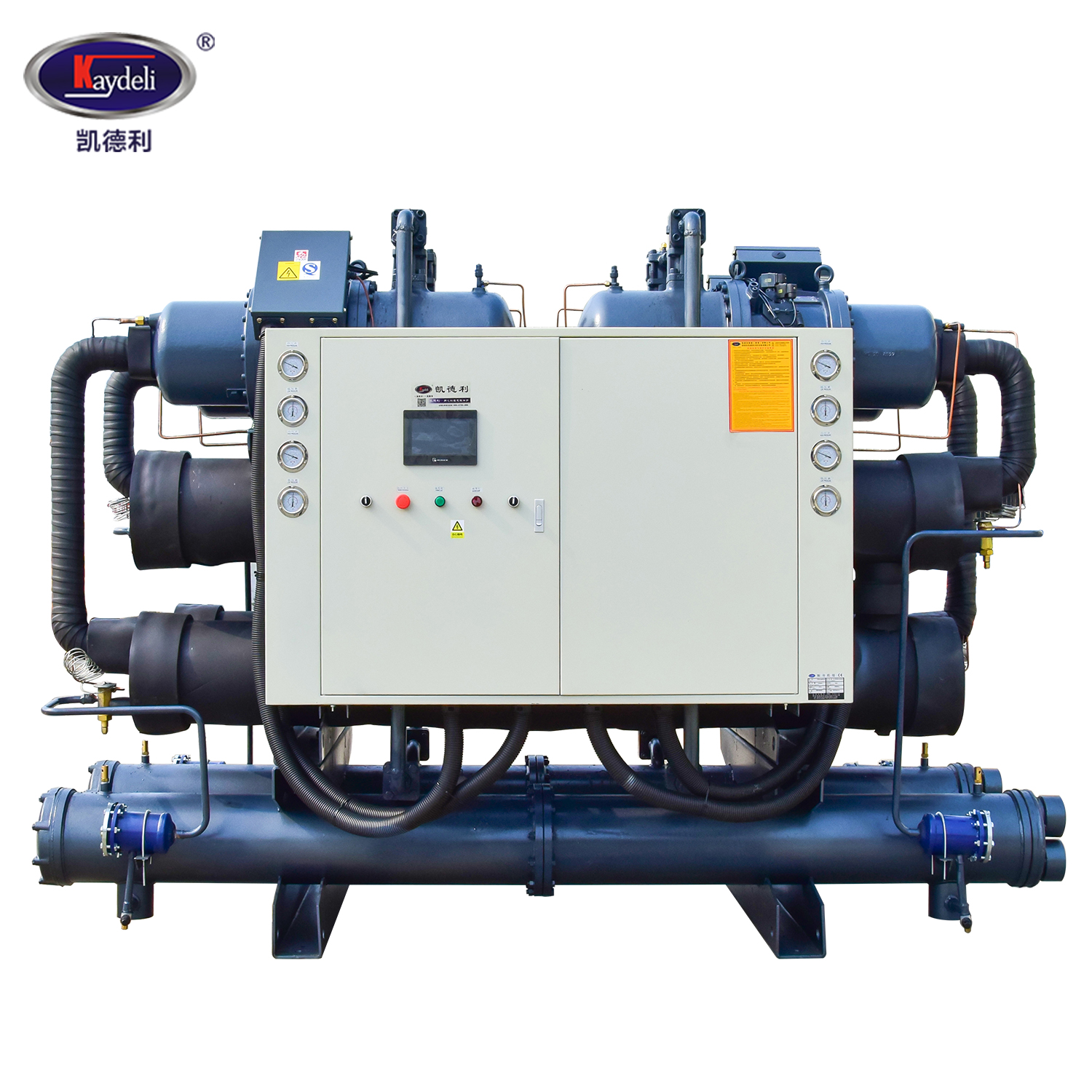

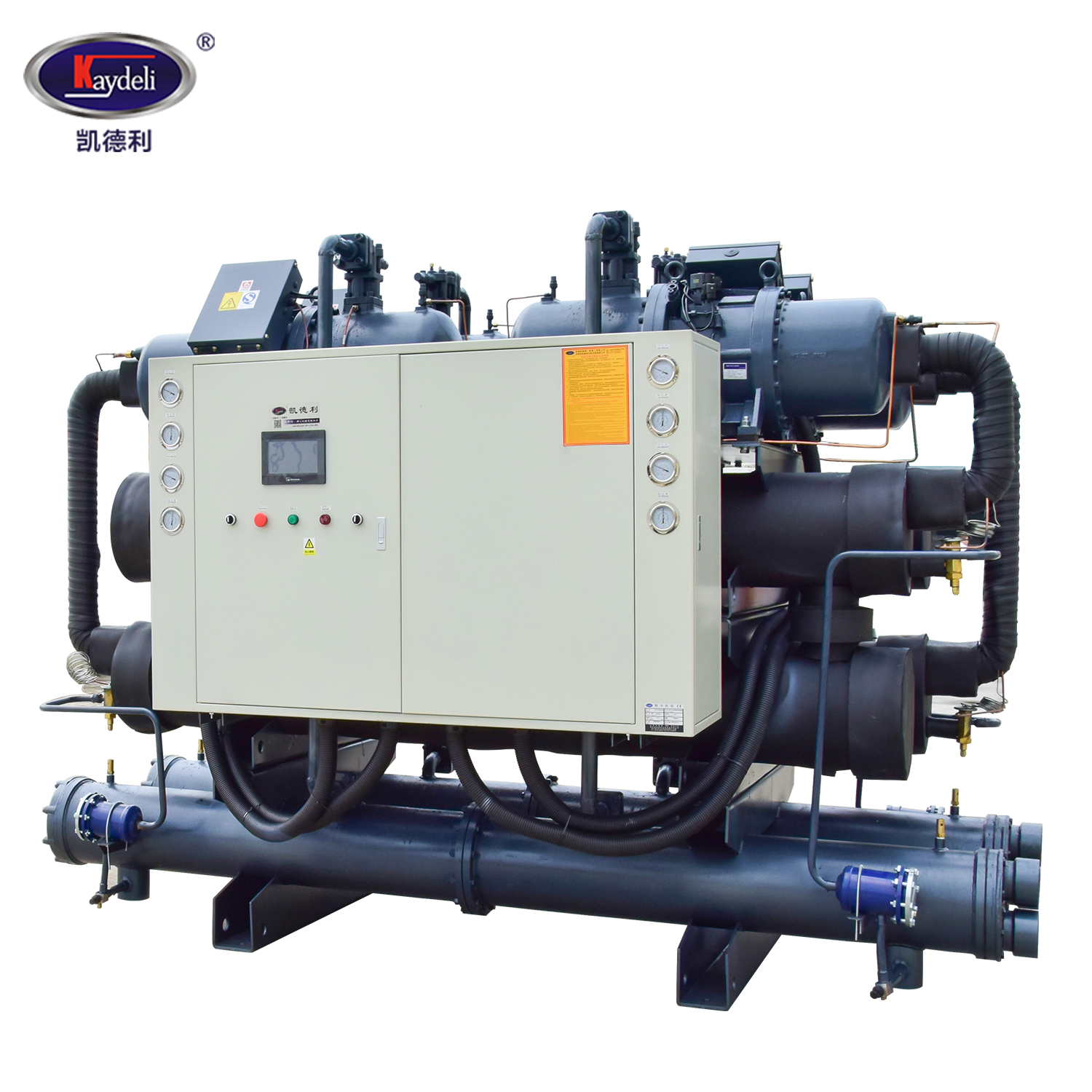

640hp 520ton 520Rt Water Cooled Screw Compressor Chiller For Anodizing  In Building
640hp 520ton 520Rt Water Cooled Screw Compressor Chiller For Anodizing  In Building
640hp 520ton 520Rt Water Cooled Screw Compressor Chiller For Anodizing  In Building
640hp 520ton 520Rt Water Cooled Screw Compressor Chiller For Anodizing  In Building
640hp 520ton 520Rt Water Cooled Screw Compressor Chiller For Anodizing  In Building
640hp 520ton 520Rt Water Cooled Screw Compressor Chiller For Anodizing  In Building
×

640hp 520ton 520Rt Water Cooled Screw Compressor Chiller For Anodizing In Building 640hp 520ton 520Rt Water Cooled Screw Compressor Chiller For Anodizing  In Building

Water-cooled screw chillers are widely used in factory equipment cooling and chemical, food, steel, electronics, reactors, fermentation tanks, freezing and refrigeration, and other industries of different scales in industrial refrigeration projects. KDS screw chillers have been our company for many years. The experience of designing and producing water chillers, combined with the latest technological development, has concentrated on research, design and development of chillers. The product keeps up with the development trend of the times, adhering to the design concept of "high efficiency, reliability, energy saving, and environmental protection" to provide users with an excellent refrigeration equipment. Can provide aqueous solution and 7~30℃ cold water, or 5~10℃ temperature difference (import and export) large temperature difference frozen water.

Quantity:
Share this:
  • Product details
  • Kaydeli Introduction
  • What we could do for U?

Features:

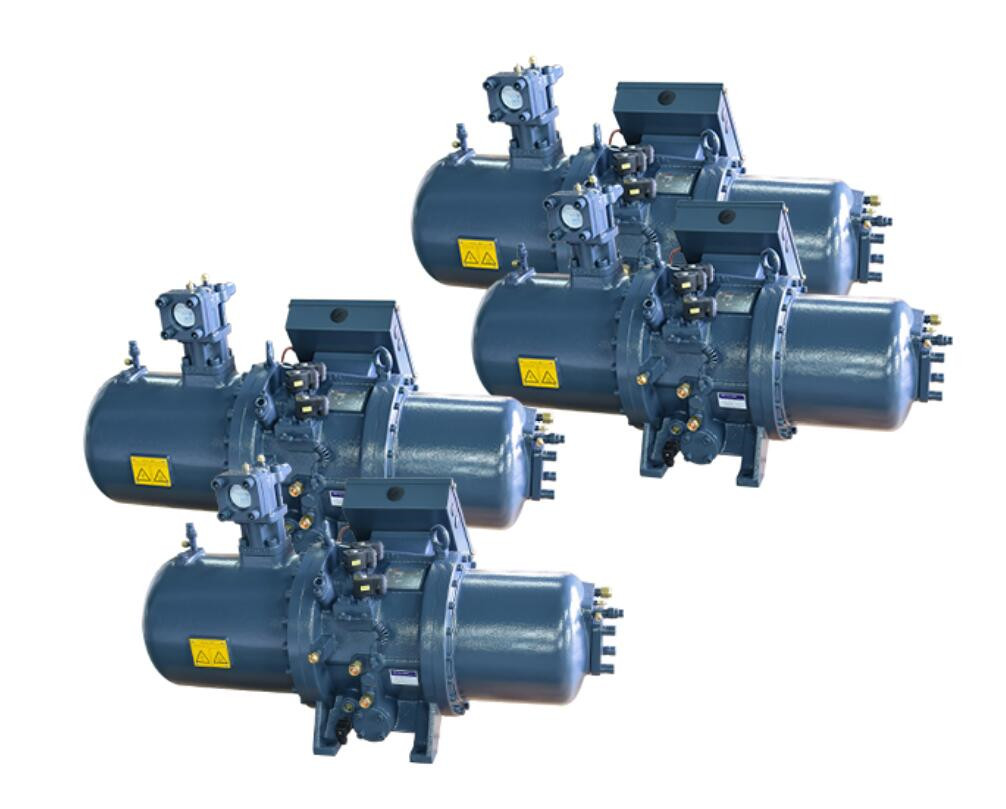

Well Known Brand Compressor

¨ Unit adopts Germany BITZER or Taiwan HANBELL brand semi-hermetic screw compressor. The latest 5 to 6 patented screw rotor profile with excellent efficiency.

¨ Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running.

¨ Most advanced patented highest precision manufacturing process.

¨ Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.

¨ Wide range of refrigerant for option, including R134a, R407c and R22(R404a, R507c upon request).

Micro-programming Control System

¨ Industrial PLC centralized control combined with compressor capacity control system, precisely monitor.

¨ Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency.

¨ Optional operation language, menu leading, unit running state easy to adjust.

Easy Installation, Reliable Running

¨ Closely stepped start-up, minimize impact to electricity.

¨ Steady and safe running, low vibration, easy for installation.

¨ Compact structure, less space demand and light in weight, easy for transport and installation.

¨ Completely wired, inspected and tested pre-delivery, saving installation time and cost.



Water Cooled Water Chiller operation diagram




Specifications(cooling capacity from 960KW to 2312KW for scroll type chiller, screw chiller could contact us):

 Model

KDS-300FLA

KDS-360FLA

KDS-400FLA

KDS-480FLA

KDS-560FLA

KDS-640FLA

KDS-720FLA

 cooling capcity

kW

960

1145

1276

1520

1760

1926

2312


kcal/h

825600

984,700

1,097,360

1,307,200

1,513,600

1,656,360

1,988,320

Input power

kW

186.0

222.0

243.0

309.0

365.0

483.0

504.0

Chilled fluid flow

m3/h

165

188

212

268

286

328

365

 Cooling fluid flow

m3/h

202

230

258

320

348

386

433

Power  supply voltage

3PH-380V-50HZ200V/220V/415V     50HZ/60HZ

Compressor

Type

Semi-Hermetic screw type


Number

4


Starting method

Y -


Capacity control type(%)

0~10016 steps adjust)


Power(kw)

50x4

60x4

66x4

88x4

96x4

112x4

122x4

Refrigeration oil

 Type

SUNISO 4GS


Charge

L

9x4

11x4

12x4

14x4

17x4

24x4

32x4

Refrigerant

Type

R-22


Control mode

Thermostatic expansion valve


Charge

kg

38x4

45x4

56x4

60x4

73x4

80x4

90x4

Evaporator

 Type

 Shell and Tube


Pipe

B

PT 8"

PT 6"x2

PT 8"x2

Condenser

 Type

 Shell and Tube


Pipe

B

PT 5"x2

PT6"x2

PT 8"x2

Protective device

Compressor overheating,over current,high and low pressure,over temperature,flow switch,phase sequence,phase-missing,exhaust overheating,anti-freezing prtection.

Dimension

L

mm

3850

3850

4000

4350

4350

4350

4350


W

mm

1800

1850

1900

1920

1920

2210

2210


H

mm

1960

2050

2160

2280

2280

2580

2680

 Weight

kg

4800

5150

5560

6150

6980

7980

9880

Note:
1. Working conditions for the determination of the capacity of the above specifications: chilled water inlet temperature 12°C, outlet temperature 7°C, cooling water inlet temperature 30°C, outlet temperature 35°C, fouling coefficient 0.0001m2°C/W;
2. The above specifications are subject to change without notice. If there are special requirements, please ask for specifications before ordering.

  Actual KDS-640FLA photoes shot in our factory:
