Kaydeli Chiller Equipment

For safety, quality, security, use Kaydeli!

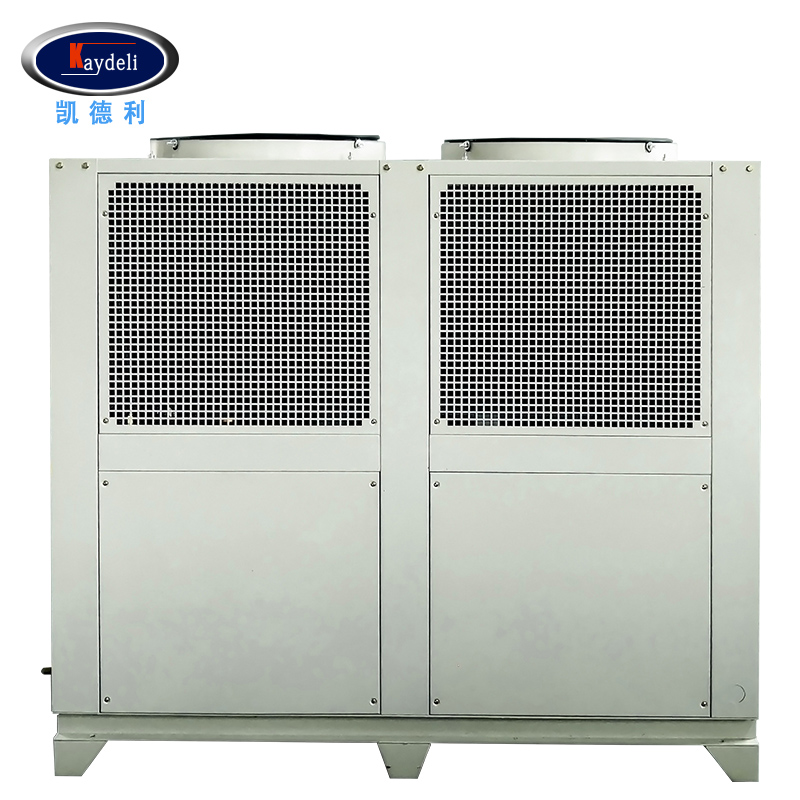

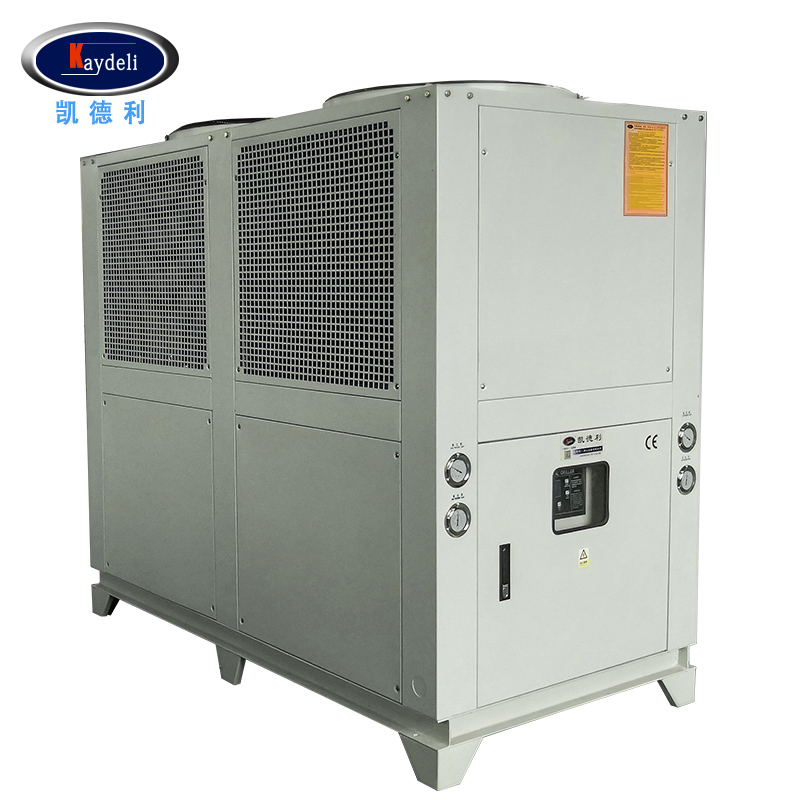

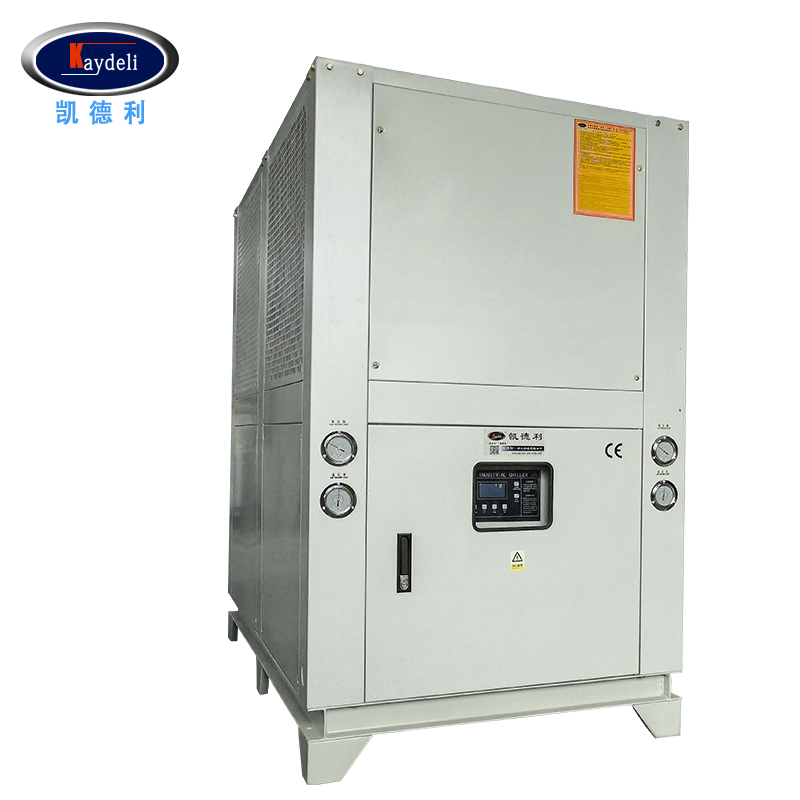

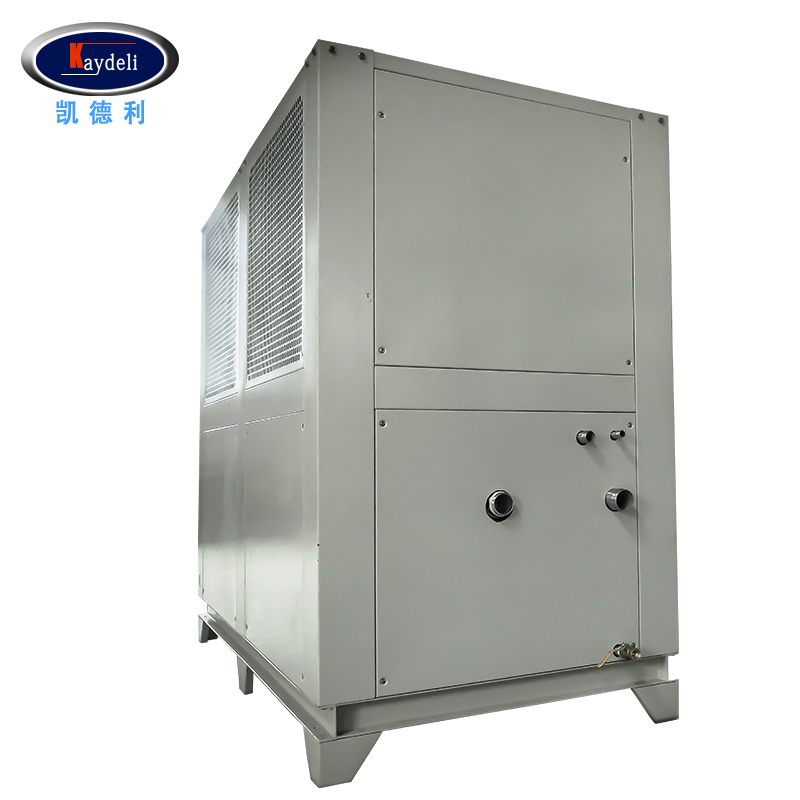

18 Ton Dedicated Individual Air Water Chiller
18 Ton Dedicated Individual Air Water Chiller
18 Ton Dedicated Individual Air Water Chiller
18 Ton Dedicated Individual Air Water Chiller
18 Ton Dedicated Individual Air Water Chiller

18 Ton Dedicated Individual Air Water Chiller 18 Ton Dedicated Individual Air Water Chiller

KC- series industrial chiller is mainly applied in Plastic & Rubber industry; it can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency. They are also widely used in Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military industries.

Share this:
  • Product Specifications
  • Features
  • Certification
  • Payment & Shipping FAQ
Power Supply Voltage3PH-380V-50HZ (220V/220V/415V 50HZ/60HZ)
Cooling Capacity50HZ: 18 ton (65.2 kw, 56,070 kcal/h);
60HZ: 22 ton (78.2 kw, 67,284 kcal/h)
Compressor TypeHermetic scroll type (Piston)
Compressor Power18.8 kw
Refrigerant TypeR22 (R407c/R134a Optional)
Refrigerant Control ModeExpansion valve
Refrigerant Filling Amount15.8 kg
EvaporatorShell and Tube (Water tank with coil)
CondenserFinned type
Cooling Fan TypeLow noise axial flow (Low noise outer rotor fan)
Cooling Fan Air volume440 cmm
Cooling Fan Power1.5 kw
Tank Volume180 L
Water Pump Power1.5 kw
Input Power21.7 kw
Chilled Fluid Flow50HZ: 13.6 m3/h; 60HZ: 16.32 m3/h
Weight810 kg
NoteTechnical specifications based on 12°C/7℃ Inlet/outlet chilled fluid temperature. Outdoor ambient temperature DB35℃/WB24℃. Data is subject to change without notice.

KC-025DA Air Cooled Chiller Operation Structure Diagram

KC-025DA Air Cooled chiller structure diagram

Product Features

  • opted world famous brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise and long service life.

  • Chilled water temperature range 5℃ to 35℃.

  • R22 charged, CFC free type R407C, R410A, R404A, R134A for option, high cooling efficiency.

  • Over sized evaporator and condenser ensure the chiller unit running under 45C high ambient temperature.

  • Microcomputer control system offering accurate temperature stability within ±1℃.

  • Low noise and big volume air blower.

  • Standard equipped Iron pump, stainless steel or high lift pump for option.

  • Multi -protection devices ensure the chiller unit running safely.

  • The innovative evaporator-in-tank configuration ensures a stey water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat gain, and increases the efficiency.

  • KC air cooled industrial chiller opted aluminum fin/copper tube type condenser, easy for cleaning and installation.

  • Power supply: 1PH 220V/50HZ-----1/2HP to 2HP; 3PH 380V/415V 50HZ-----3HP to 60HP

1. Do you have any MOQ limit for chiller?

Low MOQ, 1pc for sample checking is available.

2. How do you ship the goods and how long does it take to arrive?

We usually ship by sea, we could ship the standard chiller in 3-15 days, customized chiller in 25-35working days.

3. Do you offer guarantee for the products?

Yes, we offer 12 months warranty to our products.

4. Are your products can be customized?

Yes. Also welcomed to customized non-standard products, can achieve to -180 degree Celsius and EXDIIBT4 Explosion-proof chiller.

5. Whats your payment term?

International term-30% deposit for production, 70% balance before shipment.
