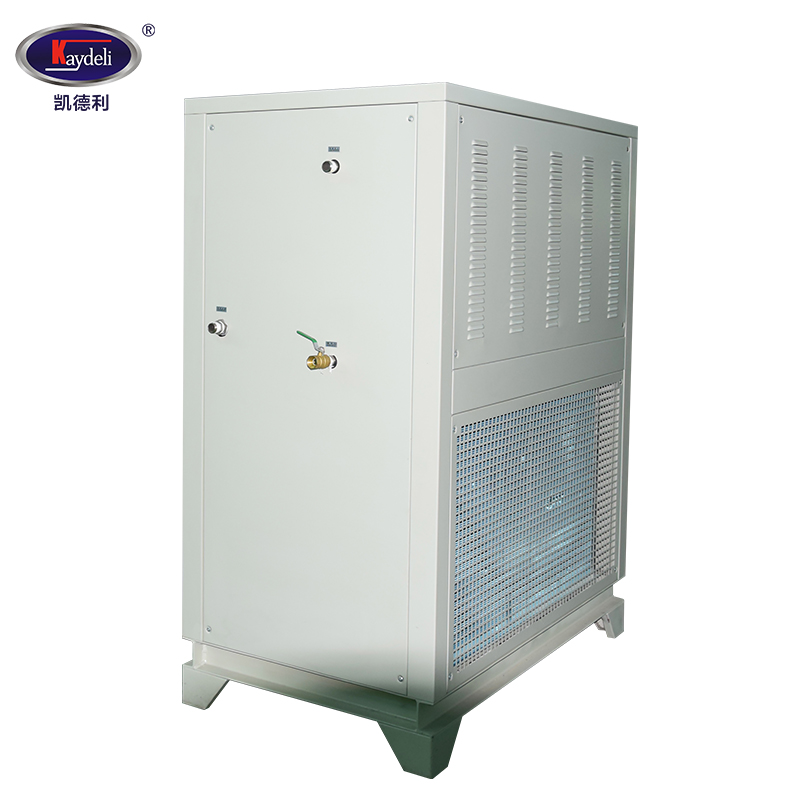

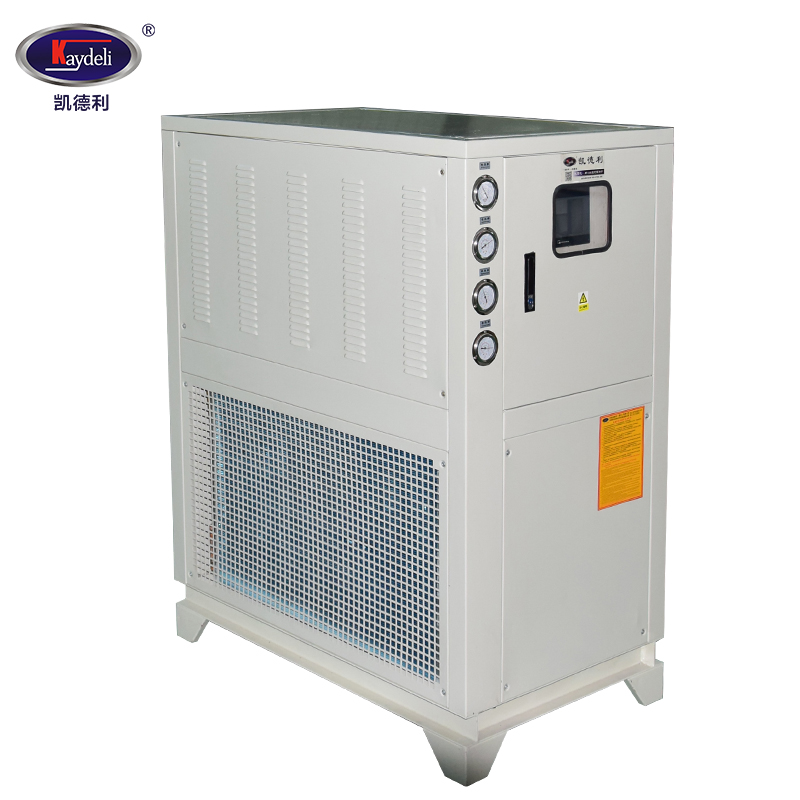

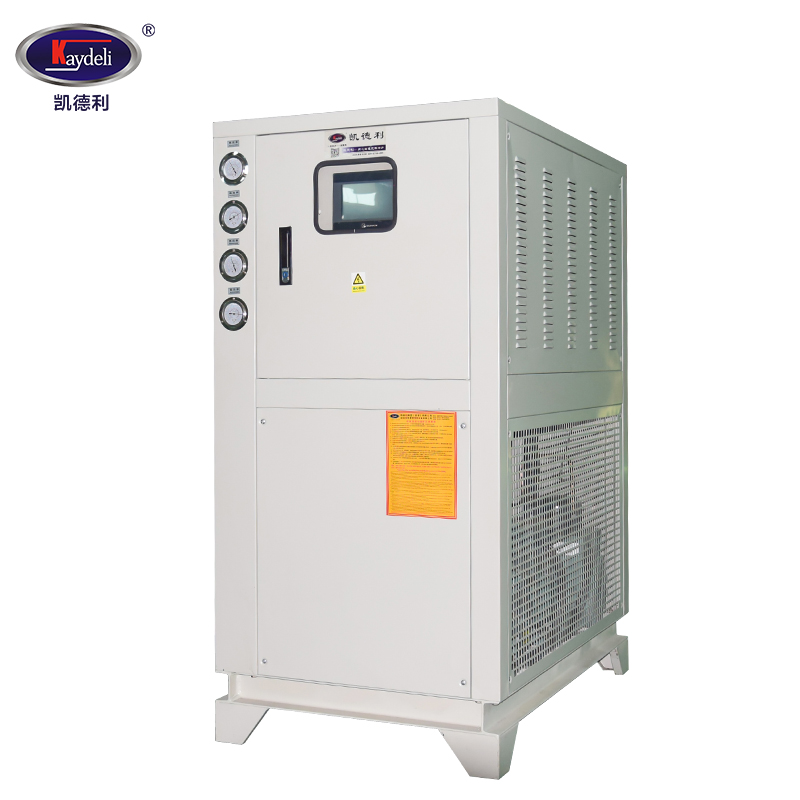

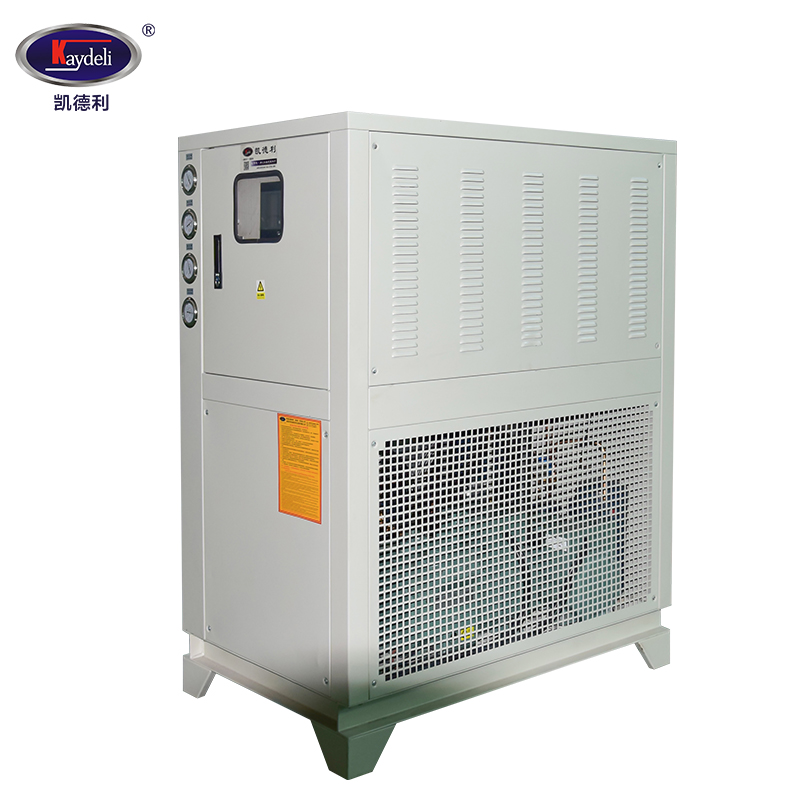

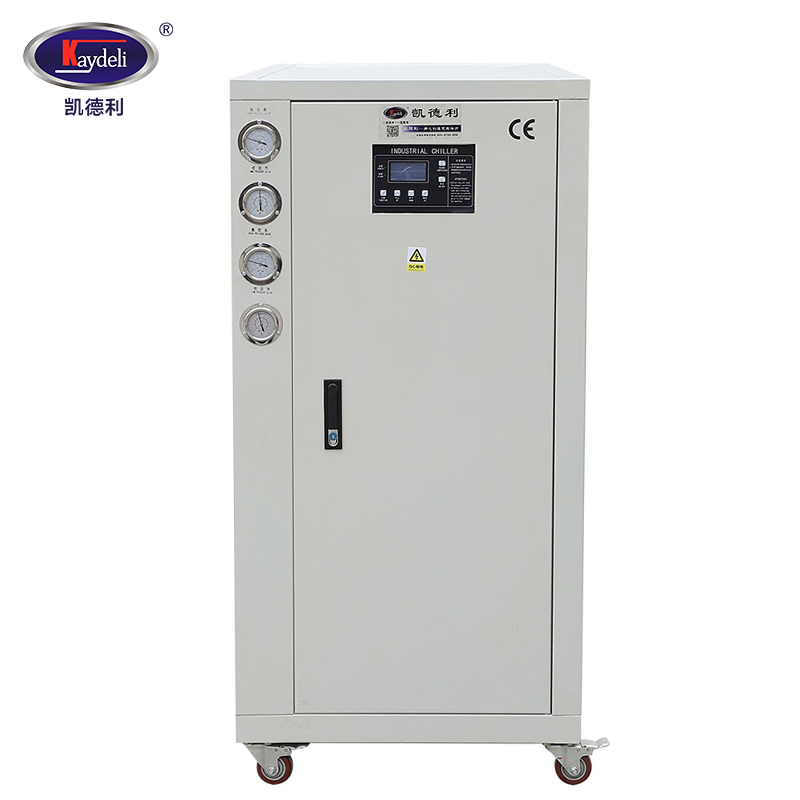

Kaydeli's laser chiller is precisely designed for laser industries like laser cutting, CNC cutting, and other industrial purposes. The chiller increases the capacity and the accuracy of the host device, the temperature error is ±1 °C
|Power supply voltage||50Hz/60Hz ~3PH, (200V,220V,415V)|
|Cooling capacity||22346 (50Hz), 26830 (60Hz) Kcal/h|
|Input power||10.53 KW|
|Refrigerant||R-22, R134A, R407C|
|Compressor||Hermetic ratating type|
|Condenser air volume||10000 m3/h|
|Cooling water volume||4.6 m3/h (50Hz), 5.4 m3/h (60Hz)|
|Water tank volume||200 L|
|In/Out water pipe||1-1/2''|
|Pump power||0.75 KW|
|Flow shift||Closed flow>16 L/min, disconnect flow <10 L/min|
|Protective device||Compressor overheats, overcurrent, high and low pressure, over temperature, flow, phase sequence/ phase loss, exhaust overheat, and antifreeze protection.|
|Dimension||L*W*H = 1300*780*1600 mm|
opted world famous brand compressors and high-efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise, and long service life.
Chilled water temperature range from 5℃ to 35℃.
R22 charged, CFC free type R407C, R410A, R404A, R134A for option, high cooling efficiency.
Oversized evaporator and condenser ensure the chiller unit running under 45C high ambient temperature.
Microcomputer control system offering accurate temperature stability within ±1℃.
Low noise and big volume air blower.
Standard equipped Iron pump, stainless steel, or high lift pump for option.
Multi-protection devices ensure the chiller unit running safely.
The innovative evaporator-in-tank configuration ensures a stey water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat gain, and increases efficiency.
KC air-cooled industrial chiller opted for an aluminum fin/copper tube type condenser, easy for cleaning and installation.
Power supply: 1PH 220V/50HZ-----1/2HP to 2HP; 3PH 380V/415V 50HZ-----3HP to 60HP
