Components of a water chilling machine

Views: 1553 Author: Site Editor Publish Time: Origin: Site

You'll need a water cooled chiller system to cool your operations and interior machine parts if your business uses process fluids or large, heat-producing gear.

Making the best decision for your cooling requirements will be aided by your knowledge of the many types of chillers and how a water cool chiller operates.


What Is a Water cool Chillers?

By extracting heat from the system and transferring it to another location, a water cool chiller is a cooling system used to lower the temperature of equipment, industrial spaces, and process fluids.

In many industrial operations, including injection molding, metal plating, oilfield production, and food processing, temperature control is crucial.


Why use a water cool Chiller?

Systems for a water cool chillers are advantageous in applications where precise operational temperatures are needed. Chillers will protect process machinery from thermal damage and ensure that final products aren't altered by exposure to inappropriate temperatures when used in conjunction with heat-sensitive processes.

A WATER COOLED CHILLER: HOW DOES IT WORK?

One of two operational principles governs an industrial chiller system:

  • Absorption of heat

  • Compression of vapor

Heat exchangers that extract heat from any linked operations and distribute it outside are integrated into heat absorption chillers.

The majority of heat exchangers are made up of piping that transports cooling fluids, such as air, water, or a combination of water and other liquids.

By moving coolant through the processes that need cooling in pipes, vapor compression chillers produce a cooling effect.

By doing this, heat from any related processes will be drawn into the coolant, which is then circulated to a refrigerant system to cool the chiller fluid and get it ready for a new cycle of process cooling.

Evaporator, compressor, condenser, and expansion unit are the four main parts of a chiller. Every chiller system also includes a refrigerant.

A low-pressure refrigerant enters the evaporator to begin the operation. The chiller refrigerant undergoes a phase shift into a gas when heated inside the evaporator. The compressor then receives the gaseous refrigerant, increasing its pressure.

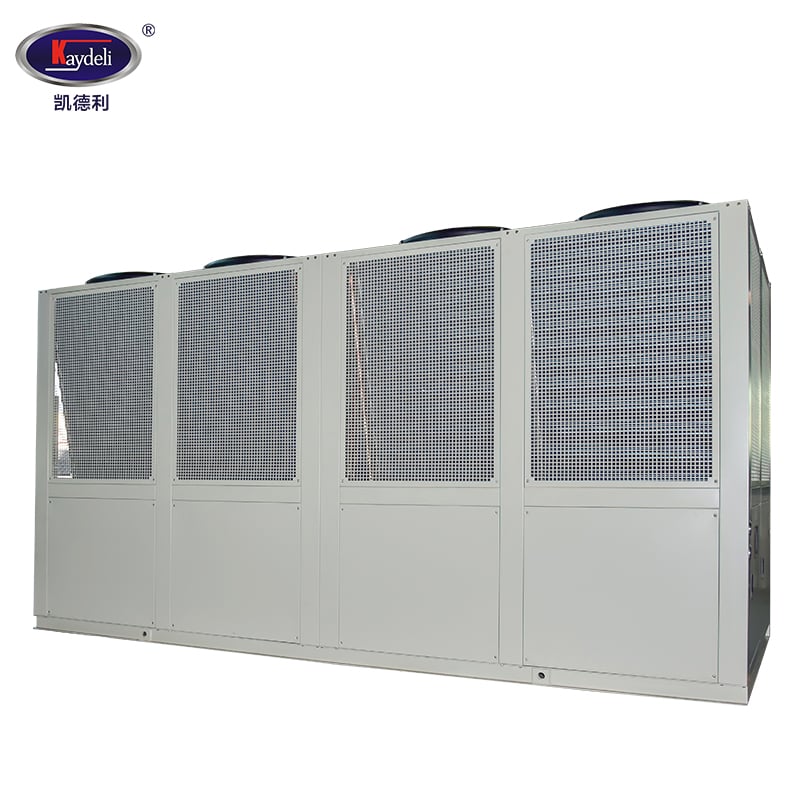

Rooftop Industrial Chiller

The high-pressure refrigerant is sent to the condenser, which condenses it into a high-pressure liquid by rejecting heat using cooling water from a cooling tower or ambient air. The expanded unit features a valve that serves as a metering device to control the refrigerant flow after the condensed refrigerant has been transferred there.

ESSENTIAL CHILLER PARTS

The following are some of the parts of the central chiller:

  • Condenser Compressor

  • Valves for evaporator expansion

  • Unit for controlling power

  • hydrant boxes

  • Condenser


A chiller condenser unit's job is to remove heat from the refrigerant that is being pumped through the chiller unit. For water-cooled variations, this is accomplished by pumping cool water between a cooling tower and the condenser, or for air-cooled chiller units, by blowing cool air over the condenser pipes.

Compressor

Any chiller system's driving component is the compressor. In order to provide process cooling, it creates the pressure gradient required to force refrigerant around the chiller unit. There are different types of condensers; the most common ones are centrifugal, screw, and reciprocating compressors.

Evaporators

Between the expansion valve and the condenser, which converts heat from any related processes into refrigerant that is circulated, is a device known as an evaporator. Depending on the chiller setup, this is then directed to either an air cooling system or a cooling tower.

Valves for Thermal Expansion

Between the compressor and the evaporator are thermal expansion valves that expand the

refrigerant that passes through them. By doing so, the pressure is reduced and the evaporator's ability to remove heat is improved.

Power Supply

Every chiller includes a power unit that regulates the flow of electricity through the system. Circuit breakers, power monitoring panels, and starters are common power unit components.

Admin Panels

Control panels are used to manage the complete cooling process. Typically, they incorporate sensors, alerts, and display displays that let users change system settings.

Partner with us for quality water cooled chiller

There is continuous innovation in the development of water cooled chiller to meet the demands of customers. As an experienced and reputable Manufacturer and Supplier ofdifferent water cooled chiller, we produce the best refrigerators for our customers.

Kindly,Click for the various designs and offer we have for you. We look forward to a lasting partnership with you.


×
