Coating Machine Cooling Project-OTC Industrial Co,.Ltd.

        Coating technology is applied in special industrial fields, and it can coat the surface of machine parts with a special compound coating, such as metal cutting and mold making. The coated tools have better abrasion resistance and longer service life. If you want to ensure product quality, you need to strictly require the coating machine itself and supporting equipment to produce parts that meet industrial production standards.

        In the industrial supporting equipment, cooling and cooling equipment has to be mentioned, because it is related to the safety of equipment production, then how to cool down the coating machine? How should the cooling system of the coating machine be designed? Before answering this question, we must know the system composition and required refrigeration capacity of the coating machine equipment in order to correctly select the chiller to cool the coating machine.



        Generally, the coating machine forms a cooling circulation channel through the metal cover and the outer wall of the coating machine. As long as the cooling water or cooling oil is provided at a suitable temperature, the purpose of cooling the equipment can be achieved.

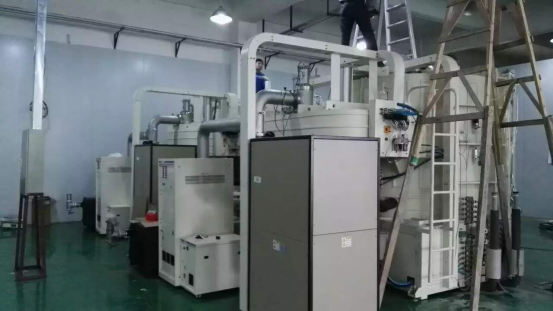

       OTC Industrial  (Qingdao) is a manufacturer specializing in the production of industrial welding robots and welding equipment. OTC is also a well-known brand in the global welding field. On the way to localized market expansion, the pace of production expansion is accelerating. Due to construction needs, it is urgent to purchase professional chillers used for cooling of vacuum coating machines and other equipment.


      Because the equipment to be cooled is located in the RF power supply department of the plant laboratory, the internal space is limited, and the internal working environment of low noise, low vibration, and low heat emission is required. The equipment work cannot affect the test personnel, so the split chiller is the best choice.

      According to the actual requirements of the customer, KC-035TA customized split air-cooled modular chiller according to customer requirements. One split chiller can produce 80KW cooling capacity. It is estimated that the customers coating machine production line requires a total of 220KW cooling capacity. A total of 3 chillers are required as cooling equipment for the coating machine.

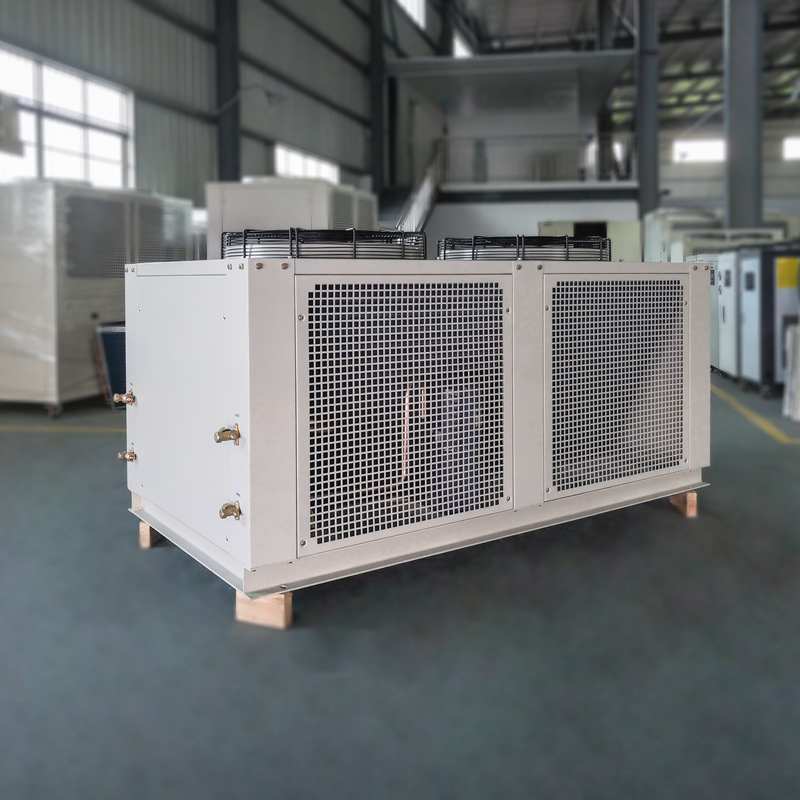

       The refrigeration scheme adopts a split air-cooled modular refrigeration scheme composed of an indoor unit and an outdoor unit. The host with large working noise and vibration parts is placed outdoors. The outdoor unit is composed of a refrigeration compressor, a heat exhaust fan and a condenser. The heat generated is taken away by the fan outdoors, and the noise source will not interfere with the working environment outdoors.

       The indoor unit is composed of a circulating water pump, a water tank and an evaporator, which brings the heat generated by the equipment to the outdoors through the pipeline without generating noise. At the same time, an 80M high-lift circulating water pump is used to ensure that the chilled water for the equipment is in place in time. The kaydeli evaporator is designed with all stainless steel and does not rust, which greatly improves the quality of the circulating chilled water and prolongs its service life.

    Kaydeli large split chiller can be used in large-scale laboratory advanced equipment such as plasma emission spectroscopy equipment, X-ray diffractometer, etc.,  and vacuum coating machines, ion coating machines, industrial furnaces and other industrial equipment supporting large heat generation are also widely used in the market application.  Machine with chiller not only has good cooling effect, but also has good environmental comfort and low noise. It is a friendly companion for industrial equipment.






×
