How Waste Heat Recovery Can Improve the Overall Efficiency of a Chiller

Views: 108 Author: Site Editor Publish Time: Origin: Site

Chillers are essential equipment in many industrial and commercial facilities, providing the cooling required for various processes and environments. Traditionally, chillers have been used to produce cold water, but recent technological advancements have expanded their role. With the growing focus on energy efficiency and sustainability, heat recovery has emerged as a key feature that can significantly enhance the performance of chillers. In this article, we explore how waste heat recovery can improve chiller efficiency, reduce energy costs, and contribute to environmental sustainability.

What Is Waste Heat Recovery in Chillers?

Waste heat recovery (WHR) refers to the process of capturing heat that would otherwise be wasted and using it for another purpose, such as preheating water or providing heating to a building. In chiller systems, heat is typically generated during the refrigeration cycle. This heat is often released into the atmosphere, but through heat recovery, this energy can be redirected for productive use.

In air-cooled chillers, heat recovery is achieved through a component called a desuperheater. This device captures the heat from the refrigerant gas leaving the compressor and transfers it to a hot water loop, which can then be used for space heating or domestic hot water needs. Similarly, water-cooled chillers use specialized condenser barrels that enable heat to be transferred to the water loop and reused, reducing the need for additional heating systems.

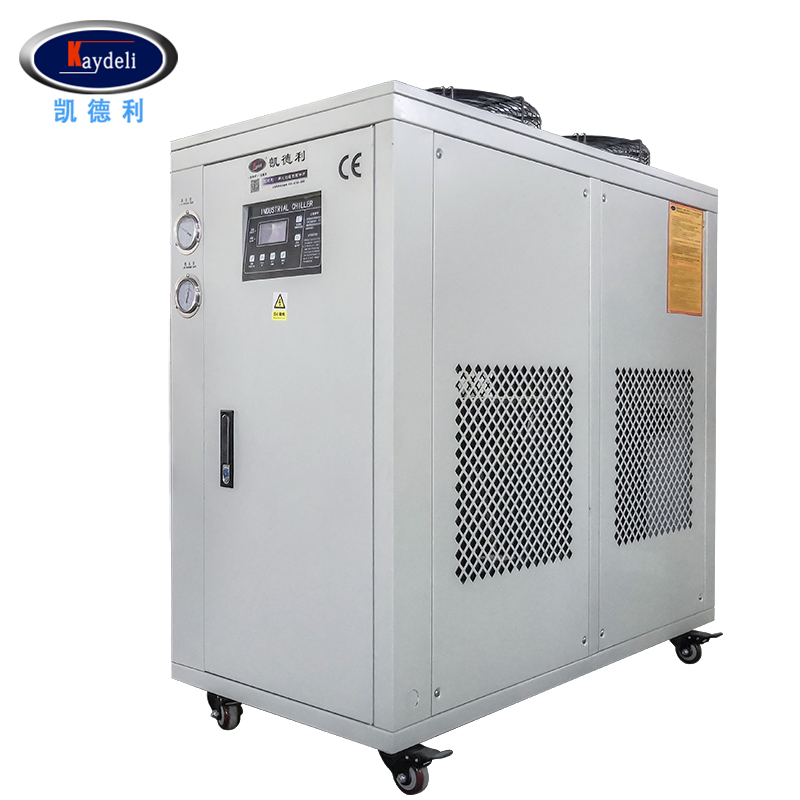

Air Water Chiller

How Does Waste Heat Recovery Work in Chillers?

The way heat recovery works varies depending on whether the chiller is air-cooled or water-cooled.

Air-Cooled Chillers:

In an air-cooled chiller, the refrigerant gas that leaves the compressor is hot and under high pressure. Typically, this heat is released into the air through condenser fans. However, when operating in heat recovery mode, this hot refrigerant is routed to a desuperheater. The heat exchanger in the desuperheater transfers the heat from the refrigerant to the incoming hot water loop. This process reduces the energy required for the condenser fan to operate and pre-cools the refrigerant, leading to improved overall system efficiency.

Water-Cooled Chillers:

Water-cooled chillers differ in that they use a condenser loop to reject heat into the atmosphere through a cooling tower. When in heat recovery mode, the heat from the refrigerant is transferred to the condenser loop, which can then be used for heating purposes. In some cases, this process requires a more complex setup, with special condenser barrels to manage both cooling and heating functions.

Why is Heat Recovery Important?

Heat recovery offers several important benefits for chiller systems, including:

1. Improved Energy Efficiency

Heat recovery significantly improves the overall energy efficiency of a chiller system. By reusing waste heat, less energy is required to run separate heating systems, resulting in reduced energy consumption. In fact, chillers equipped with heat recovery can improve the Energy Efficiency Ratio (EER) by about 0.5, which translates to substantial energy savings over time.

2. Reduced Operating Costs

By capturing and reusing heat, chillers with waste heat recovery require less fan energy and have shorter operating cycles. The heat recovered from the system can replace or reduce the need for dedicated heating systems, leading to lower utility bills. This is particularly beneficial in environments with simultaneous heating and cooling needs, such as hotels or healthcare facilities.

3. Environmental Benefits

Utilizing waste heat reduces the overall carbon footprint of a building or facility. As energy consumption decreases, so do the greenhouse gas emissions associated with energy generation. In many cases, waste heat recovery can reduce carbon emissions by several thousand tons per year, helping businesses meet sustainability goals and comply with environmental regulations.

Applications of Heat Recovery in Chillers

Heat recovery is not a one-size-fits-all solution, and its effectiveness depends on various factors such as building design, geographical location, and load profiles. However, it is particularly beneficial in certain industries and building types:

1. Hospitality Industry

Hotels and resorts often have high demands for hot water, and heat recovery is an excellent way to meet this demand. Waste heat can be used to provide domestic hot water, reducing energy consumption and cutting down on operating costs. Heat recovery is also useful in hotels that require simultaneous heating and cooling, such as those with large conference rooms or event spaces.

2. Educational Facilities

Schools, universities, and research institutions have diverse energy needs due to the variety of spaces they encompass, from classrooms and laboratories to gyms and auditoriums. Heat recovery in chillers can meet the hot water demands of these buildings while improving overall energy efficiency.

3. Healthcare Facilities

Hospitals and healthcare centers require precise control of temperature and humidity. They also often need to simultaneously heat and cool different areas, such as patient rooms and operating theaters. Waste heat recovery can help meet these demanding conditions, ensuring energy efficiency while maintaining the required indoor climate.

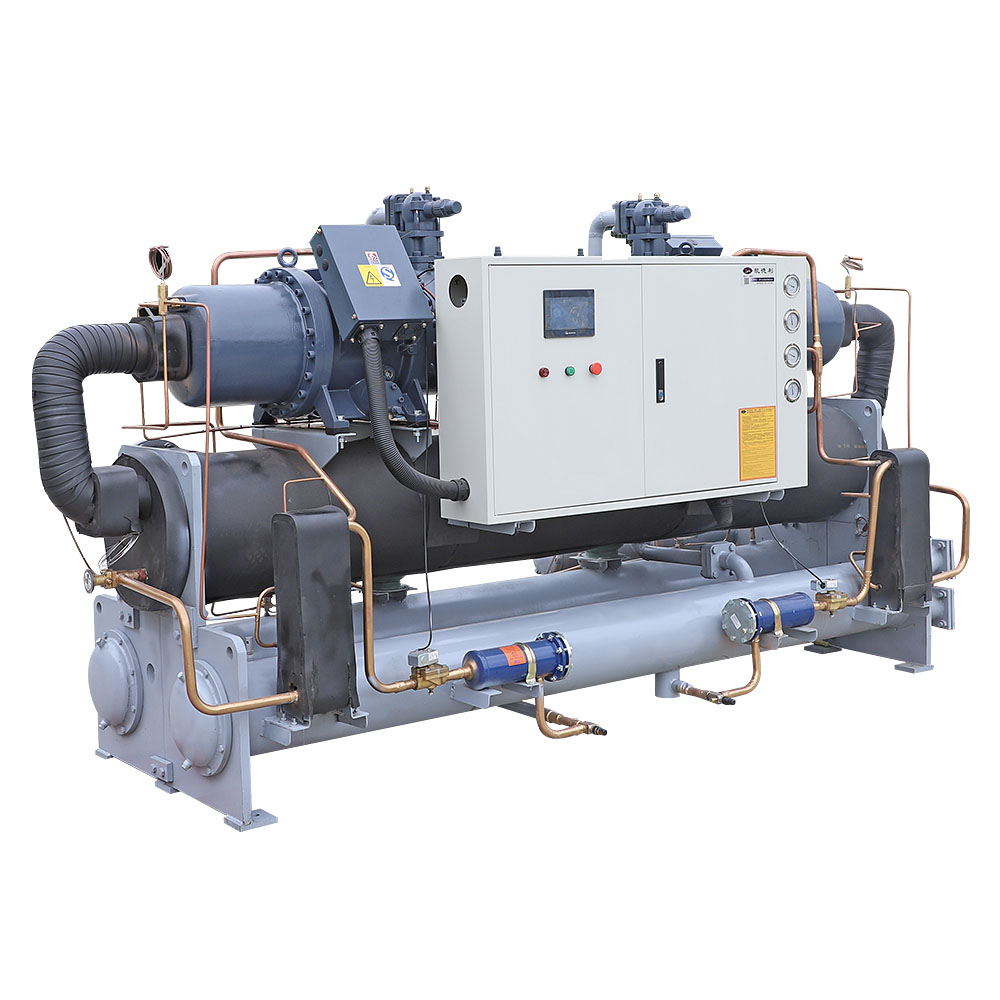

water cooled chiller unit

The Future of Heat Recovery in Chillers

As energy efficiency becomes an even higher priority in both residential and commercial buildings, heat recovery is expected to play a significant role in the future of HVAC systems. Advances in technology, such as Green Heat Recovery (GHR) systems, allow for more seamless integration of waste heat recovery into chillers. These systems can reduce the need for additional heating equipment and improve overall system efficiency.

The growing emphasis on sustainability and environmental responsibility means that more building owners and facility managers will consider heat recovery as part of their cooling strategy. Innovations in smart chiller technology, including the use of IoT (Internet of Things) for real-time monitoring and control, are also driving greater adoption of waste heat recovery systems.

Conclusion: Maximizing the Efficiency of Your Chiller System

Waste heat recovery is a highly effective way to enhance the efficiency of your chiller system, reduce energy costs, and contribute to sustainability efforts. By reusing the heat generated during cooling processes, businesses can significantly lower their overall energy consumption, decrease operating costs, and reduce their environmental impact.

If you’re looking to improve the energy efficiency of your facility and take advantage of the benefits of heat recovery, contact Kaydeli today. We offer a wide range of chiller systems with integrated heat recovery capabilities, tailored to meet the specific needs of your business.

Ready to optimize your cooling system and save on energy costs? Reach out to Kaydeli for customized chiller solutions with waste heat recovery technology today!

×
